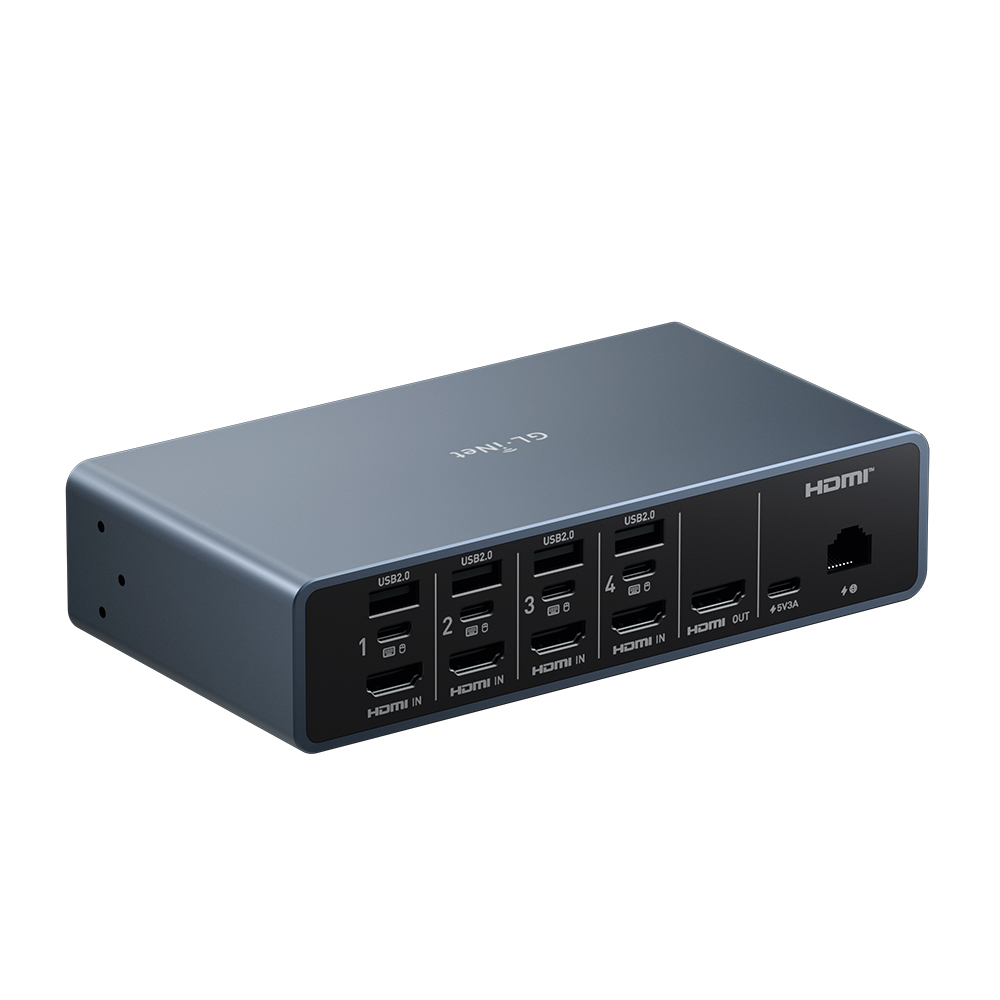

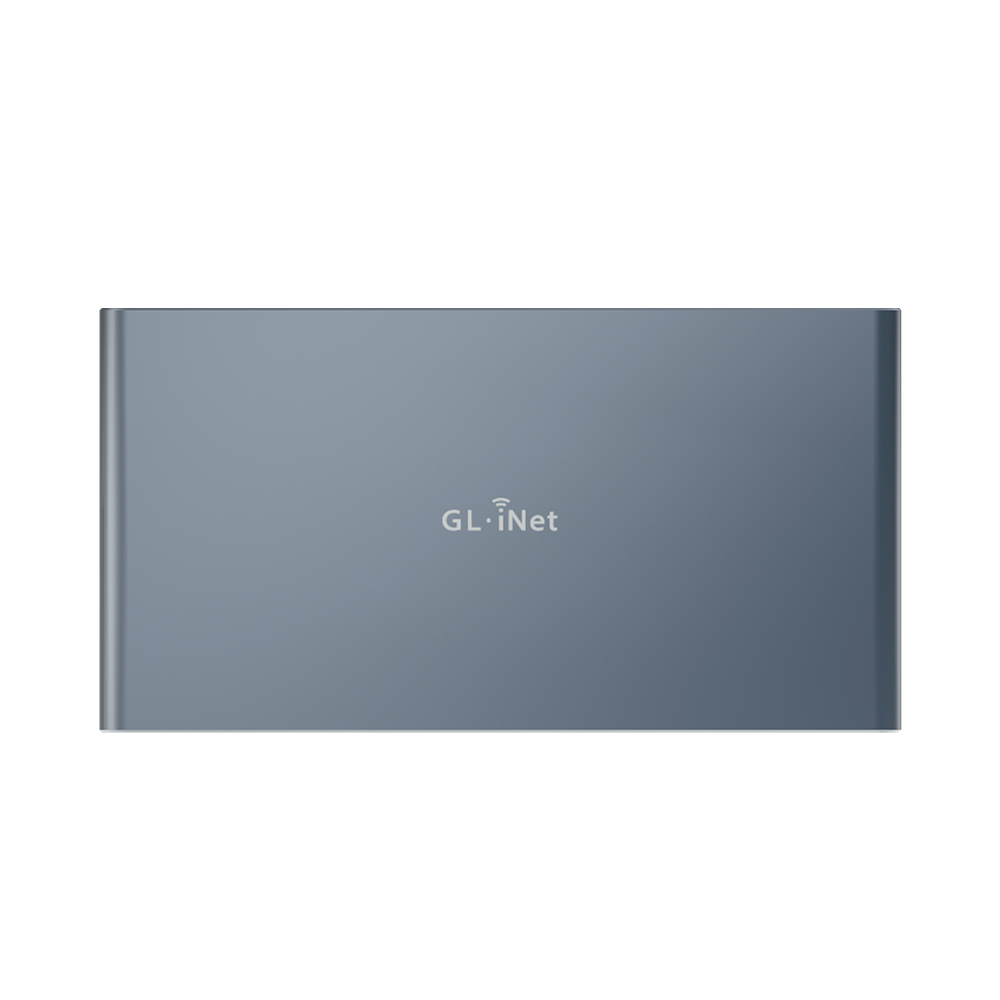

Quad-Port Remote KVM with PoE Support
Quad-Port Remote Control: Control up to 4 servers from anywhere in 4K@30fps via browser or app.
PoE-Powered Setup: Power over Ethernet simplifies installation and reduces cable clutter in your rack.
Rack-Ready Design: Fits into rack-mounted setups and integrates easily with your existing server environment.

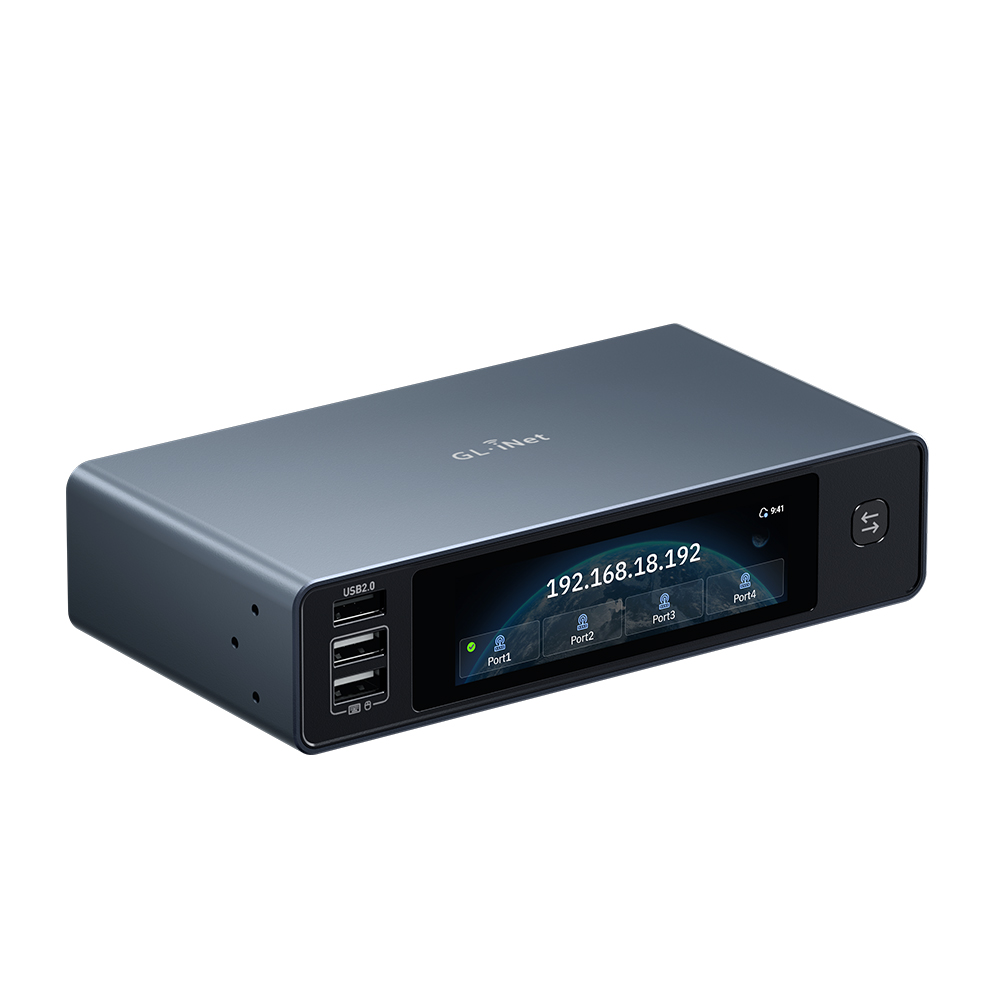

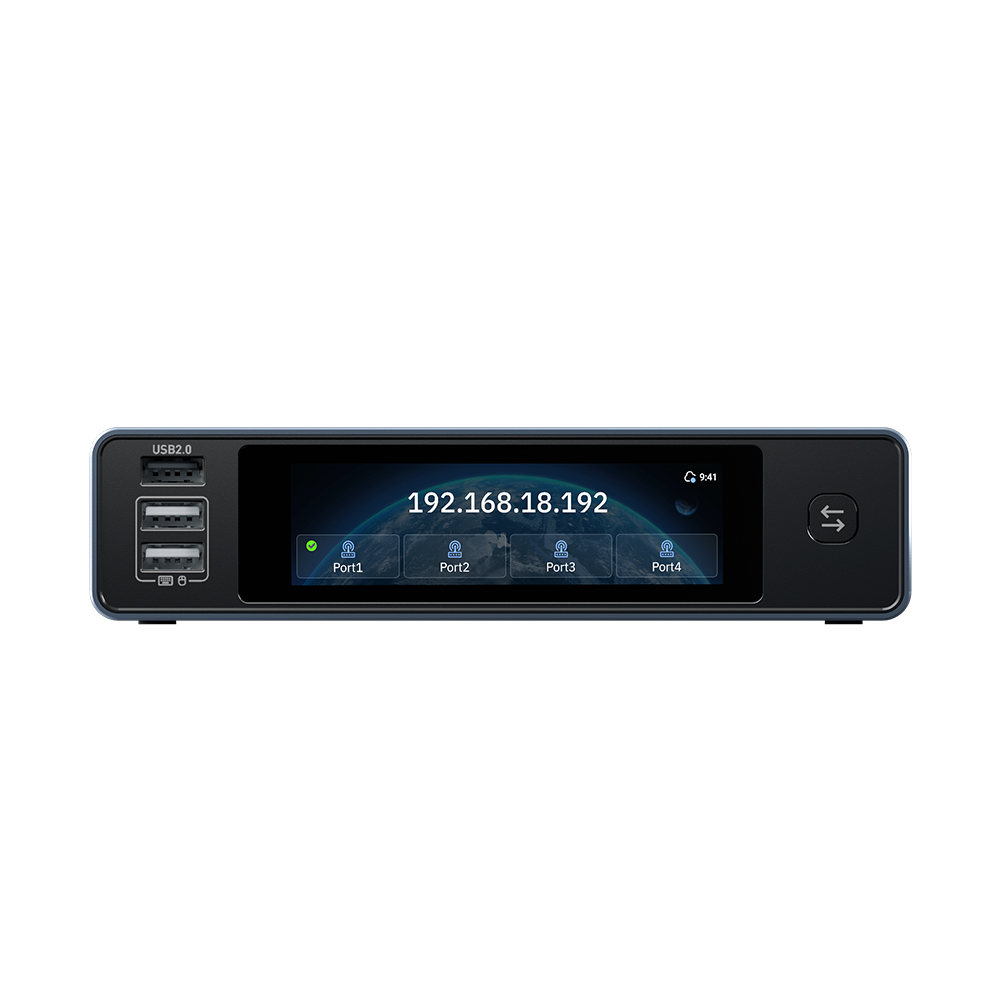

Touchscreen Interface: Tap to view device IP, online/offline status, and active sessions at a glance.
Local Control: Connect a keyboard, mouse, and monitor for local troubleshooting, setup, or OS installation.
64GB eMMC Storage: Built-in image repository for ISO storage, OS deployment, and emergency recovery.
Power-over-
Ethernet
4-Server
Control
Touchscreen
Display
BIOS Access
4K@30FPS
HDMI Passthrough
Tailscale/Zerotier/
Netbird
APP/Browser
Access
Self-hosted
Deployment
Technical Specifications

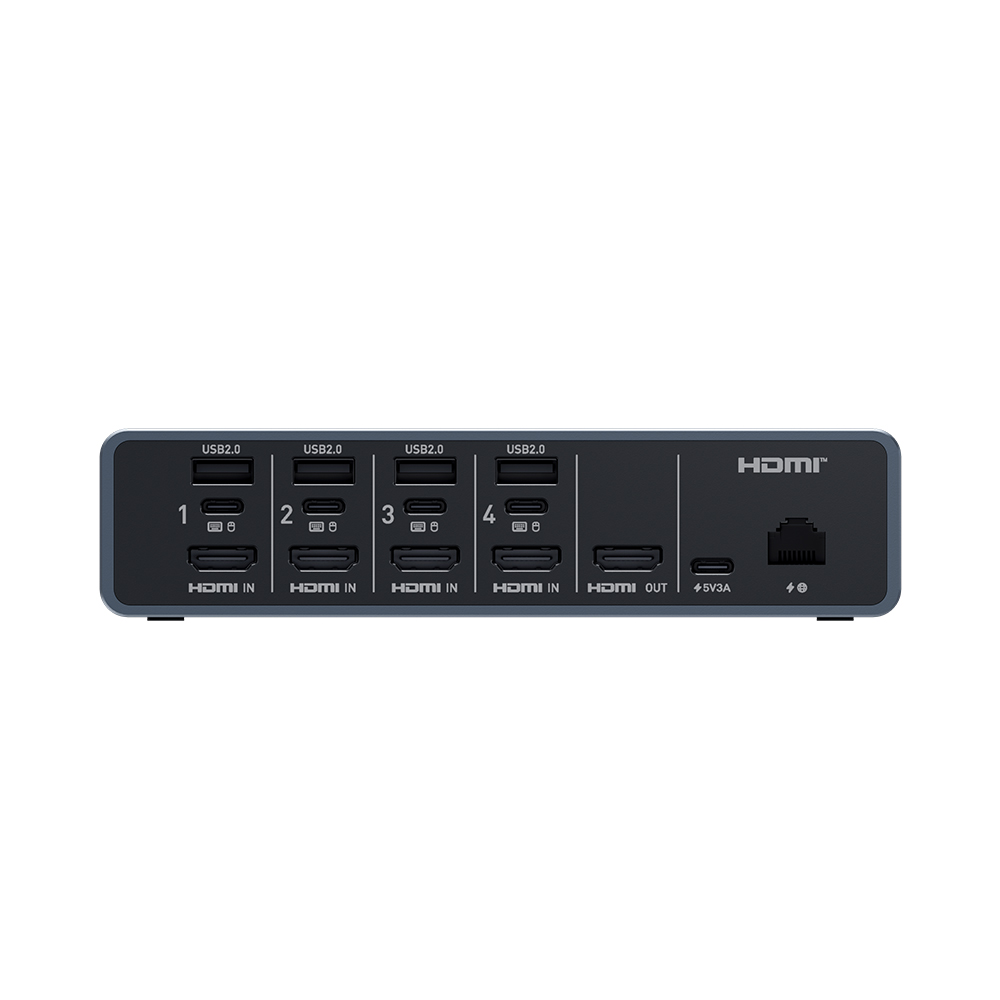

| Interface | 7 x USB 2.0 Type-A Host Ports (5 V/0.5 A per port, for external peripherals) 4 x USB 2.0 Type-C Device Ports (For connection to host computers) 4 x HDMI IN 1 x HDMI OUT 1 x 1 Gbps (802.3af/at PoE support) 1 x USB-C Power Port (Optional 5V/3A, PD-compatible) 1 x Function Button |
| Operating System | Linux-6.1 |
| CPU | ARM Cortex, quad-core |
| Memory / Storage | DDR3L 1 GB / eMMC 64 GB |
| Display Screen | 3.69 inch, TFT touchscreen |
| Ethernet Port | 1 x RJ45 |
| Ethernet Speed | 10/100/1000 Mbps |
| Resolution | 4K@30FPS |
| Power Input | Ethernet (PoE) USB-C (Optional 5V/3A, PD-compatible) |
| Dimension | 170 x 90 x 40 mm / 560g |
| Rack Mounting | Compatible with 10-inch and 19-inch racks; brackets for both sizes included |
| Tools & Downloadables | App | Media Kit |
